Modular & Semi-Modular Operation Theatres
Turnkey OT solutions with advanced sterility and infection control systems
Complete Operation Theatre Solutions
Our modular operation theatre setups are designed for high sterility and efficiency. We construct turnkey OTs (including gynecology and other specialized OTs) using prefabricated panels and advanced airflow solutions.
Each theatre is built to meet exacting standards of sterility, temperature control and ergonomic workflow. By combining HEPA-filtered laminar airflow ceilings with hospital-grade HVAC and lighting systems, our OTs maintain optimal infection control and staff productivity.
We also handle all civil, electrical and biomedical equipment integration to deliver a fully functional OT space that meets NABH, ISO, and international healthcare standards.
Why Choose Modular OTs
Superior Sterility
Seamless, non-porous surfaces with HEPA-filtered laminar airflow for Class 100/1000 cleanroom standards.
Rapid Installation
Prefabricated modular construction reduces installation time by 50-60% compared to conventional OTs.
Customizable Design
Flexible layouts and configurations to meet specific surgical specialty requirements.
Types of Operation Theatres
Modular OT
Complete prefabricated units with integrated systems. Best for new installations requiring highest sterility.
- • Prefabricated panels & ceiling
- • Integrated laminar airflow
- • Rapid installation (4-6 weeks)
- • Highest infection control
Semi-Modular OT
Hybrid approach using existing structure with modular components. Cost-effective for renovations.
- • Modular components in existing space
- • Customized laminar flow systems
- • Medium installation time
- • Balanced cost & performance
Gynecology OT
Specialized theatres for obstetric and gynecological procedures with specific layout requirements.
- • Dedicated neonatal resuscitation area
- • Specialized lighting for procedures
- • Enhanced infection control
- • Emergency equipment integration
Our OT Installations
OT System Components

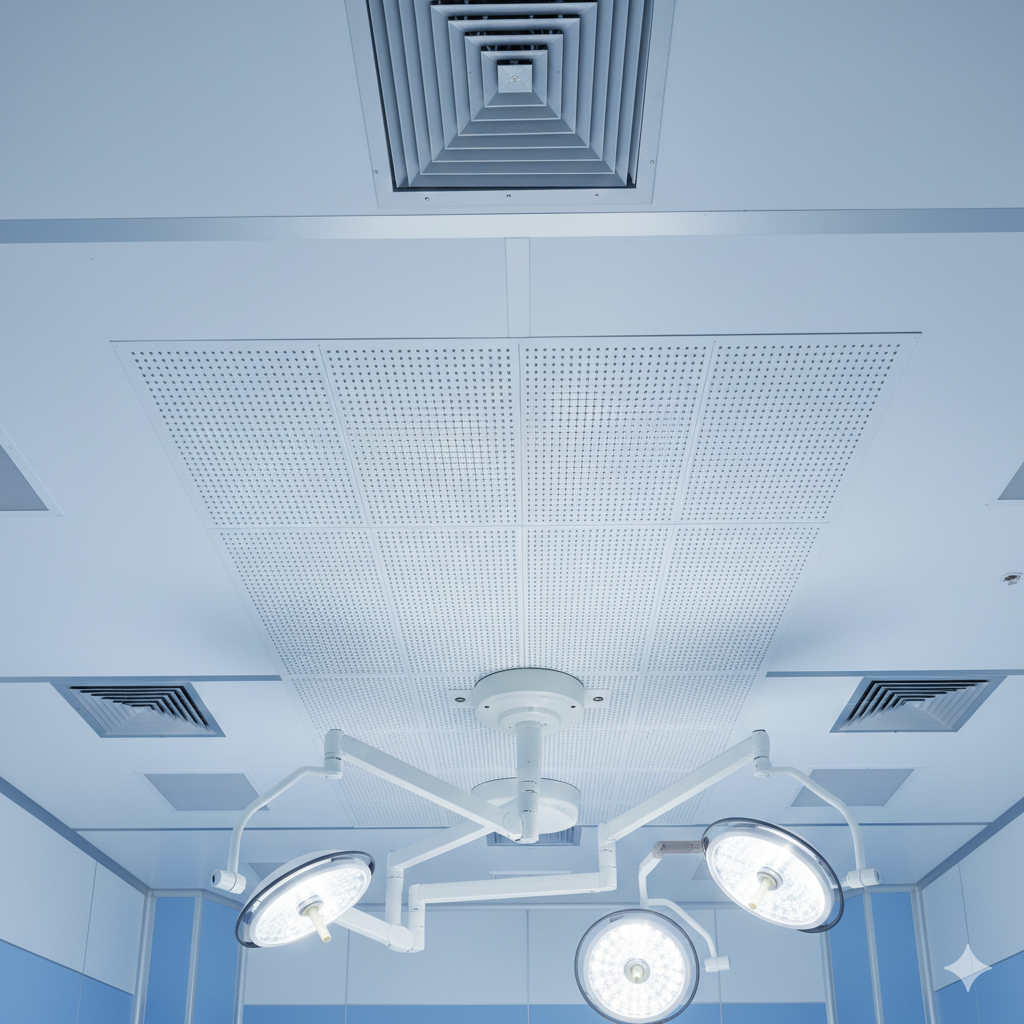

Laminar Airflow System
HEPA-filtered unidirectional airflow (Class 100/1000) with 20-25 air changes per hour.
HVAC System
Precise temperature (20-24°C) and humidity (40-60%) control with energy recovery.

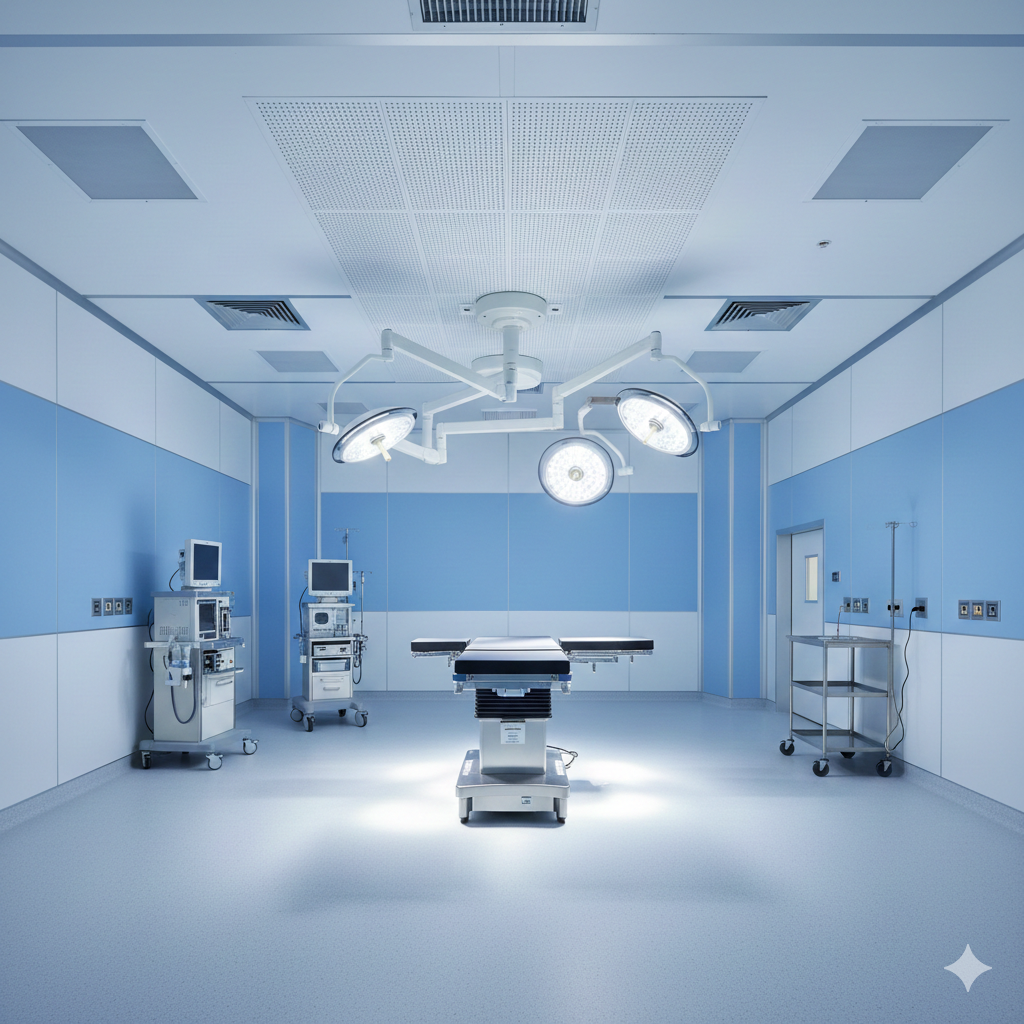

Surgical Lights
Shadow-free LED surgical lights with adjustable intensity and color temperature.
Electrical System
Isolated power supply, UPS backup, and specialized OT sockets with grounding.

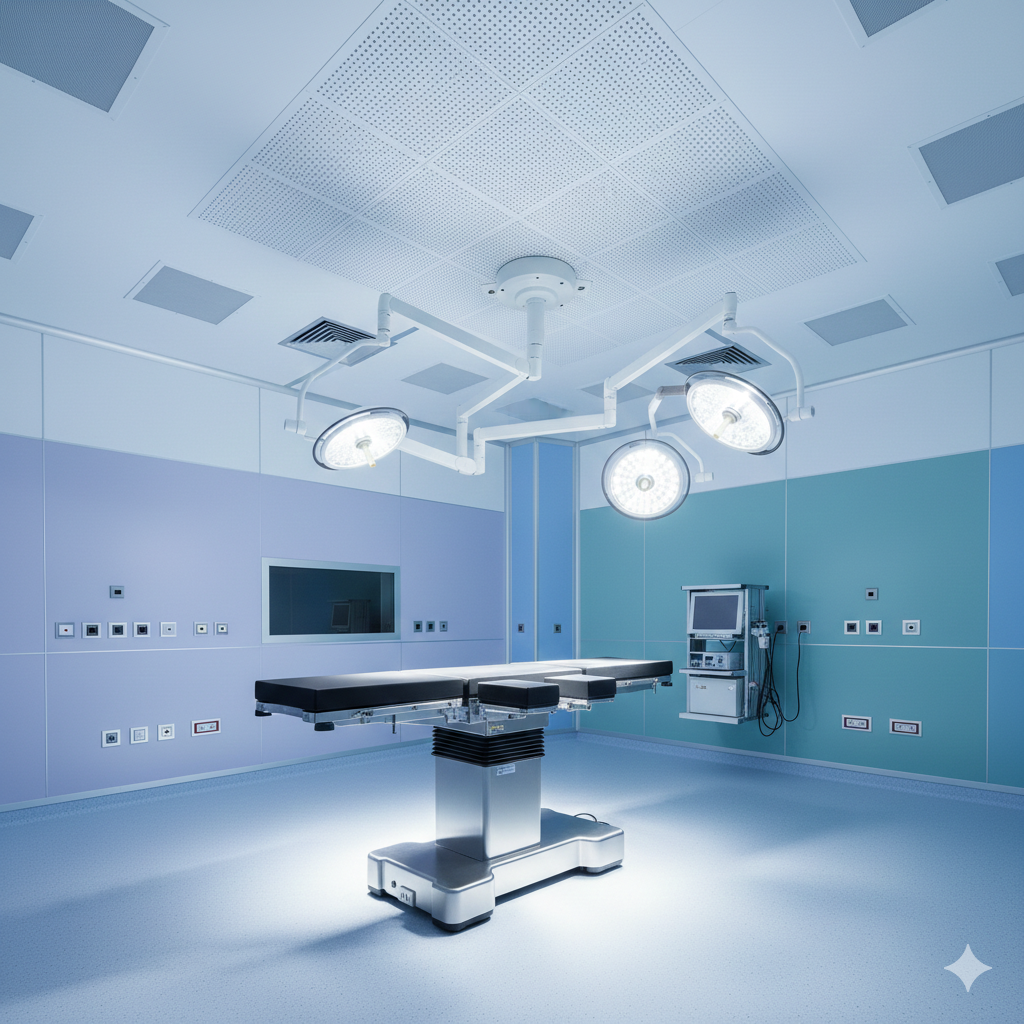

Control System
Touch screen control panel for lighting, HVAC, and medical gas management.
Alarm Systems
Pressure, temperature, humidity, and medical gas alarm systems with remote monitoring.
Laminar Airflow Technology
Unidirectional Airflow Process
Air Intake & Pre-Filtration
Outside air is drawn through pre-filters (G4/F5) removing large particles (>5μm) before entering the AHU.
Primary Filtration
Air passes through bag filters (F7/F9) removing particles down to 1μm with 85-95% efficiency.
HEPA Filtration
Final HEPA filtration (H13/H14) removes 99.97-99.995% of particles ≥0.3μm, achieving Class 100/1000 air.
Laminar Flow Distribution
Filtered air is distributed through perforated ceiling panels creating unidirectional downward airflow at 0.25-0.35 m/s.
Air Return & Exhaust
Contaminated air is exhausted through low-level returns maintaining positive pressure gradient.
Technical Specifications
OT Installation Process
Modular OT Installation
Site Preparation (1-2 weeks)
Civil work, flooring, and utility connections as per design specifications.
Panel Installation (2-3 weeks)
Prefabricated wall and ceiling panel installation with integrated services.
System Integration (1-2 weeks)
HVAC, electrical, medical gas, and equipment integration.
Testing & Commissioning (1 week)
Airflow testing, particle count, pressure differential, and system validation.

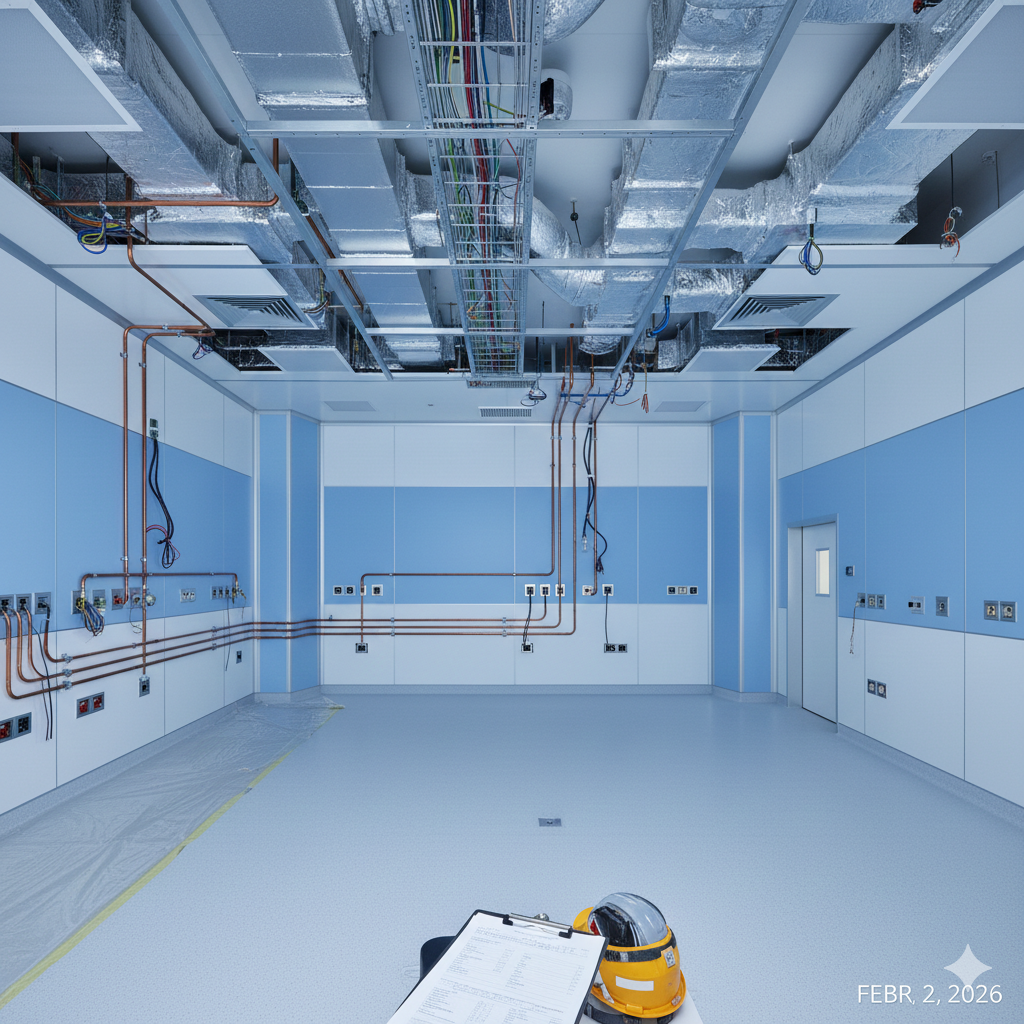

Key Integration Services
Civil Integration
Structural modifications, false flooring, and utility ducting as per OT requirements.
Electrical Systems
Isolated power supply, emergency lighting, equipment power, and grounding systems.
Medical Gas Systems
Oxygen, medical air, vacuum, and anesthetic gas pipeline integration.
Biomedical Equipment
Anesthesia machines, patient monitors, surgical tables, and imaging integration.
Standards & Compliance
Quality Assurance
Material Standards
- • Anti-static, fire-resistant wall panels
- • Seamless, non-porous, coved flooring
- • Medical-grade stainless steel fixtures
- • HEPA filters (H13/H14 grade)
Testing Protocols
- • Particle count testing (0.3μm & 0.5μm)
- • Airflow velocity & uniformity testing
- • Pressure differential validation
- • Smoke visualization for airflow patterns
Specialized Operation Theatres
Cardiac OT
Specialized theatres for cardiac surgeries with enhanced imaging, perfusion systems, and emergency equipment integration.
Neuro OT
Advanced neurosurgical theatres with intraoperative MRI/CT compatibility, neuronavigation, and specialized lighting.
Ophthalmic OT
Microsurgery theatres with specialized microscopes, phacoemulsification systems, and precise environmental control.
